XTP CrossPoint 1600數字矩陣

5 2 Gbps 數據速率數字背板，豐富的本地、雙絞線和光纖輸入輸出矩陣板選擇支持來自以太網控制端口的 RS-232 插入，為部分 XTP 雙絞線發送器和接收器遠程供電音頻分離，模塊化、可現場升級

咨詢熱線：010－84572118

產品特性
詳細參數

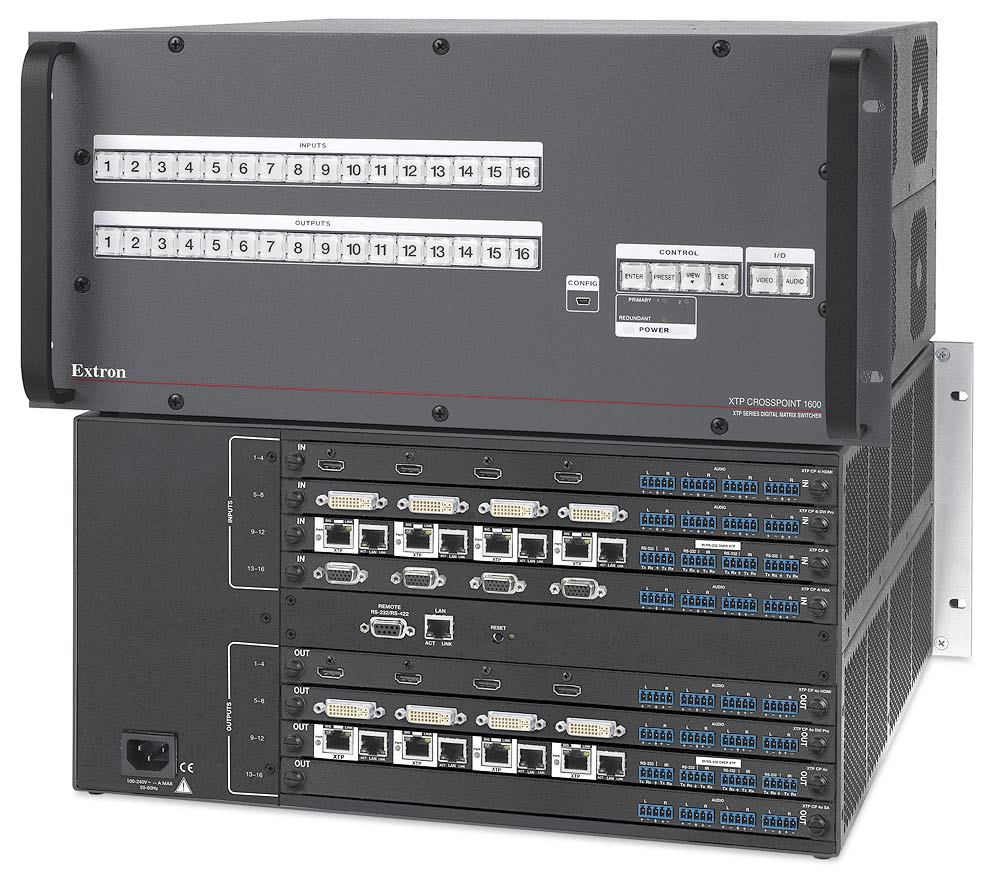

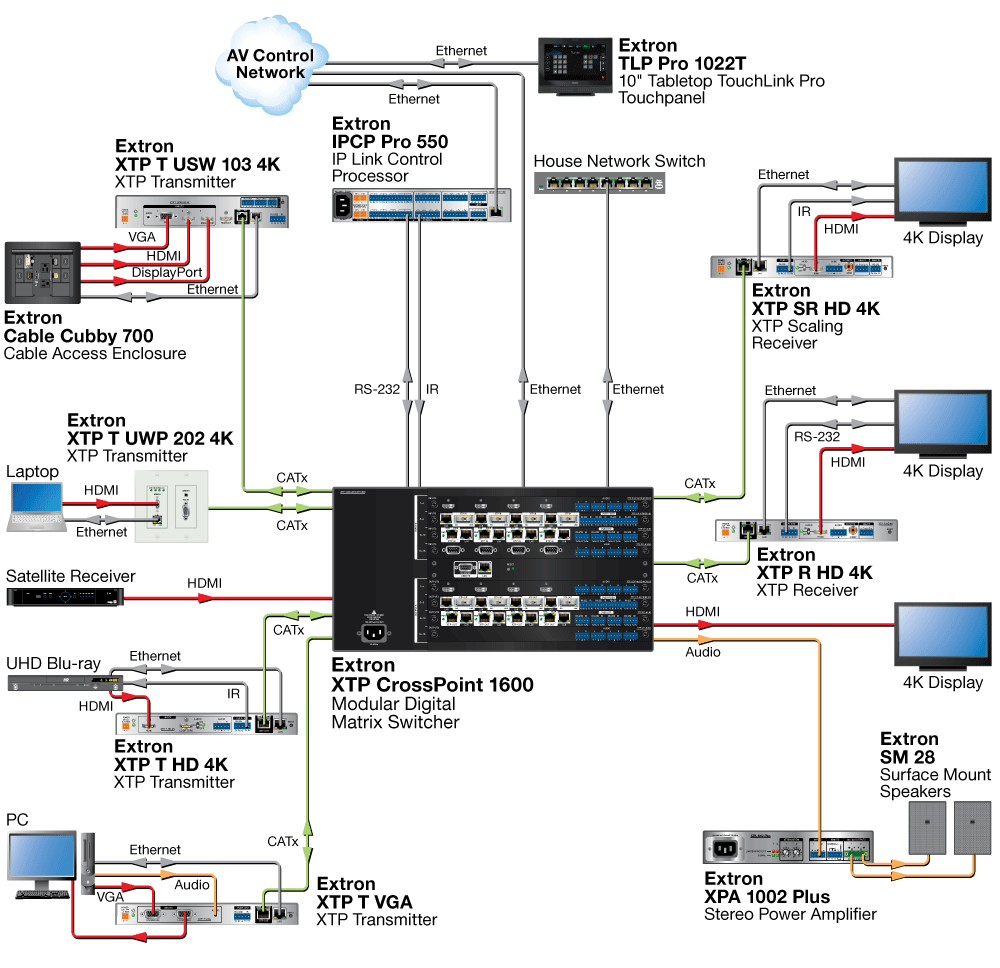

Extron XTP CrossPoint? 1600 在本地和遠程終端之間提供了靈活、可靠的數字和模擬視頻切換和分配。此模塊化矩陣切換器使用多種可選擇的輸入和輸出板，尺寸可配置為 4x4 至 16x16 不等。它可通過單根 CATx 屏蔽電纜將高分辨率視頻、音頻、RS-232、以太網信號和電源發送至 100 m 的遠端 XTP? 發送器和接收器，還能通過光纖傳輸更遠的距離。XTP CrossPoint 1600 也支持 HDMI、DVI、VGA、視頻和音頻與本地信號源和顯示設備的直連。XTP Systems? 具有超快的數字視頻切換和先進的系統監控功能，可提供穩定的信號路由和高可靠性。

特性

輸入/輸出尺寸從 4x4 至 16x16 不等

15.2 Gbps 數據速率數字背板

豐富的本地、雙絞線和光纖輸入/輸出矩陣板選擇

支持來自以太網控制端口的 RS-232 插入

為部分 XTP 雙絞線發送器和接收器遠程供電

音頻分離

模塊化、可現場升級和熱插拔的設計

支持 HDMI 2.0b 參數標準，包括高達 15.2 Gbps 的數據速率、HDR、高達 12 位的色深、3D 和高清無損的音頻格式

符合 HDCP 2.2 標準

SpeedSwitch? 技術為 HDCP 加密內容提供了超快的切換速度

SD Pro 處理技術可對標清視頻進行去隔行處理

EDID 管理器 (EDID Minder?) 自動地管理已連接設備之間的 EDID 通信

密鑰管理器 (Key Minder?) 持續地驗證 HDCP 標準，用于快速、可靠的切換

以太網擴展

全數字信號路由

每路數字輸入具有自動電纜均衡功能

自動輸出時鐘恢復

通過 RS-232 或以太網進行 HDCP 驗證和信號存在確認

HDCP 可視確認 — 當處理 HDCP 加密的內容時，如果視頻輸出連接至一個不符合 HDCP 標準的顯示設備，圖像解析度轉換器即會輸出一個全屏的綠色信號，可以從視覺上立刻確認被保護內容無法顯示在此顯示設備上

音頻輸入增益及衰減

輸出屏蔽控制

音頻輸出音量調節

以太網監視和控制

含或不含音頻的內部彩條測試圖案，可用于設置和校準

可選的冗余電源

三色背光按鍵

QS-FPC? - 快速切換前面板控制器

全局預設

查看輸入/輸出模式

前面板配置端口

前面板安全鎖定

可選遠程控制

內置 Extron Everlast? 電源 — 該通用型電源具有經驗證的高可靠性和低功耗，能夠降低運行成本

Extron Everlast 電源可享受 7 年部件及人工保修

AV routing capabilities

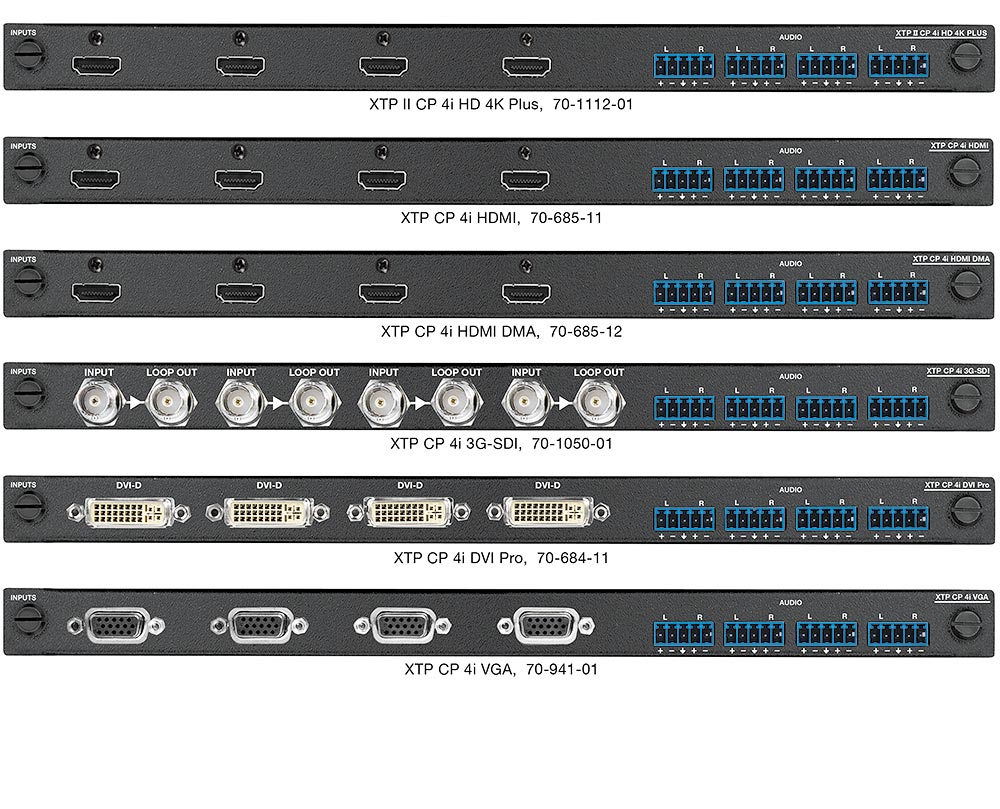

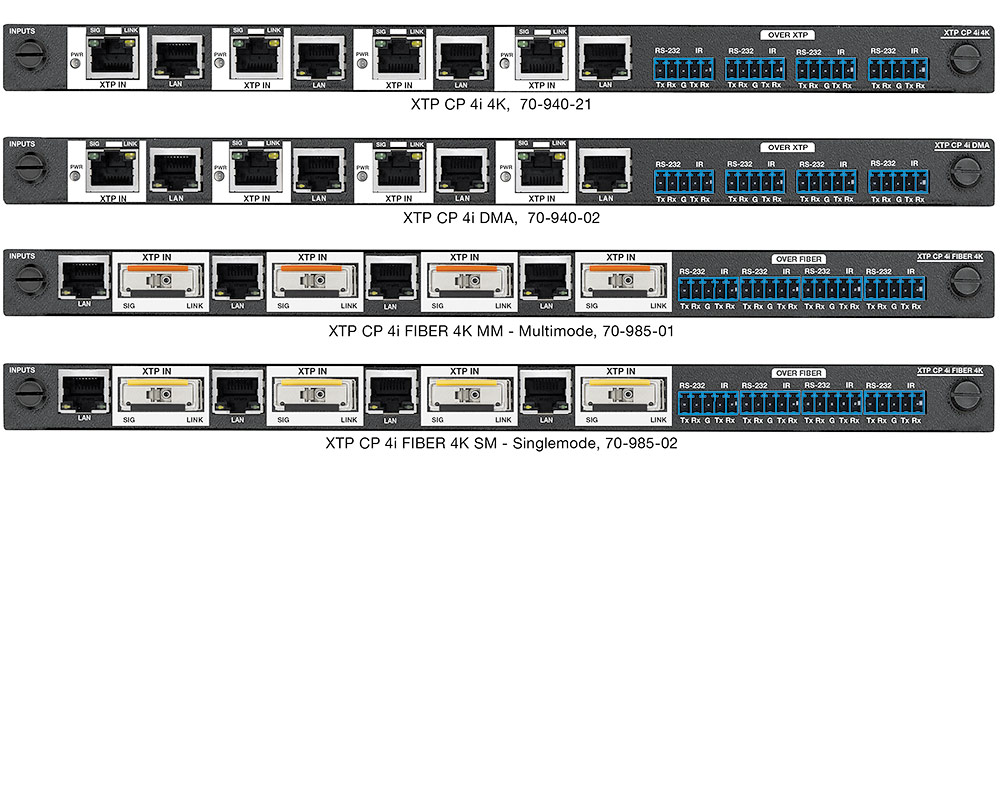

Number of input slots	4
Input video signal format	HDMI, DVI, 3G-SDI, RGBHV, RGBS, RGsB, RsGsBs, YUV, S-video, composite video, XTP twisted pair, XTP fiber
Input audio signal format	PCM up to 8 ch, Dolby Atmos?, Dolby? TrueHD, Dolby Digital Plus?, Dolby Digital EX, Dolby Digital, DTS-HD Master Audio?, DTS-HD High Res, DTS 96/24, DTS-ES?, DTS, analog stereo

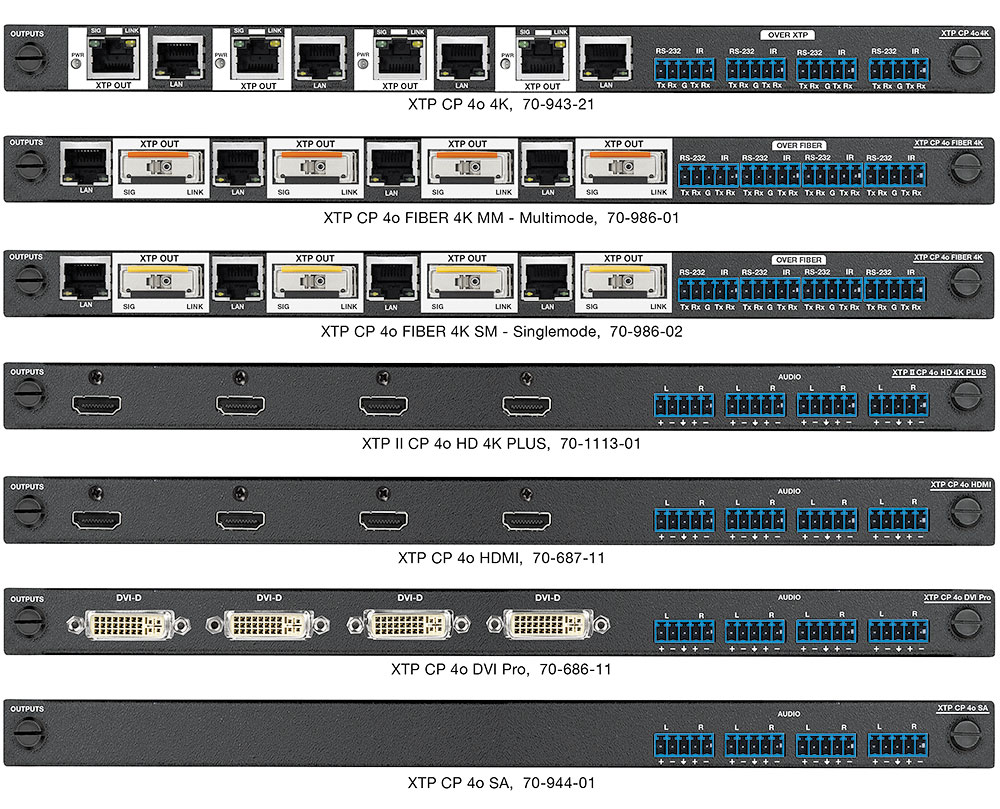

Number of output slots	4
Output video signal format	HDMI, DVI, XTP twisted pair, XTP fiber
Output audio signal format	PCM up to 8 ch, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital, DTS-HD Master Audio, DTS-HD High Res, DTS 96/24, DTS-ES, DTS, analog stereo
Backplane
Switcher	16x16 matrix
Maximum throughput	15.2 Gbps

Communications — switcher host ports
NOTE The front panel USB port and rear panel RS-232 port are independent of each other and can be used at the same time.
Serial host control port	1 bidirectional RS-232 or RS-422, rear panel female 9-pin D connector
Baud rate and protocol	9600 (default) to 115200 baud, 8 data bits, 1 stop bit, no parity, no flow control
Serial control pin configurations
RS-232	2 = Tx, 3 = Rx, 5 = GND
RS-422	2 = Tx-, 3 = Rx-, 5 = GND, 7 = Rx+, 8 = Tx+
USB control port	1 front panel female mini USB B
USB standards	USB 2.0, low speed
Ethernet control port	1 female RJ-45
Ethernet data rate (for network communication)	10/100Base-T, half/full duplex with autodetect
Ethernet protocol	ARP, ICMP (ping), IP, TCP, DHCP, HTTP, SMTP, Telnet
Ethernet default settings	Link speed and duplex level = autodetected IP address = 192.168.254.254 Subnet mask = 255.255.0.0 Default gateway = 0.0.0.0 DHCP = off
Web server	Up to 200 simultaneous sessions 7.0 MB nonvolatile user memory
Program control	Extron XTP System Configuration Software for Windows? Extron Simple Instruction Set (SIS?) Microsoft? Internet Explorer? ver. 6 or higher, Telnet

General
Power	Internal Input: 100-240 VAC, 50-60 Hz Redundant power supply is optional.
Power consumption	29.6 to 637 watts, depending on the configuration
With primary power supply only
115 VAC, 60 Hz	30.6 watts
240 VAC, 50 Hz	29.6 watts
With both primary and redundant power supplies
115 VAC, 60 Hz	44.0 watts
240 VAC, 50 Hz	39.5 watts
Remote power capability	Supports up to 28 XTP twisted pair endpoints
Temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Fan, right to left (as viewed from front panel)
Thermal dissipation	101 to 2174 BTU/hr, depending ont he configuration
Mounting
Rack mount	Yes
Enclosure type	Metal
Enclosure dimensions	8.75" H x 17.0" W x 17.5" D (5U high, full rack wide) (22.2 cm H x 43.2 cm W x 44.5 cm D) (Depth excludes connectors. Width excludes rack ears.)
Product weight with boards installed	39.0 lbs (17.7 kg)
Vibration	ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety	CE, c-UL, UL
EMI/EMC	CE, C-tick, FCC Class A, ICES, VCCI, KCC
Environmental	Complies with the appropriate requirements of RoHS, WEEE.
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE All nominal levels are at ±10%.
NOTE Specifications are subject to change without notice.
